Infrastructure

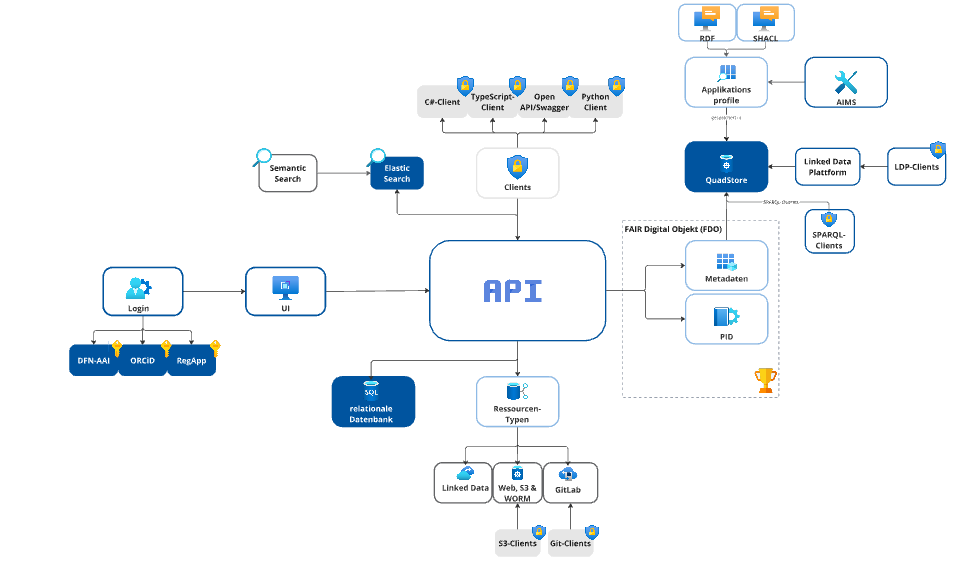

This page provides a simple and easy-to-understand overview of Coscine's infrastructure. This is illustrated in Figure 1, which includes only the most important components of Coscine's infrastructure and therefore serves as a simplified illustration. For a deeper insight into the structure of the FDM platform Coscine, please read the blog post.

Legend for better understanding:

• Dark blue boxes: Instance or service
• White boxes with dark blue border: Application
• White boxes with light blue border: Concept/definition
• Gray boxes: Clients

Figure 1 - Infrastructure of Coscine
